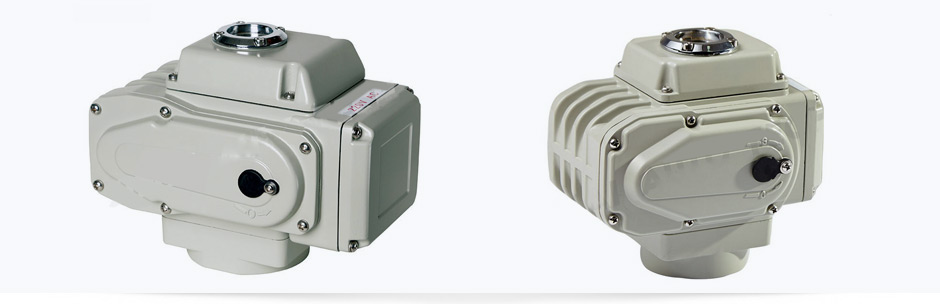

ACTUADOR ELECTRICO CON VALVULA BOLA

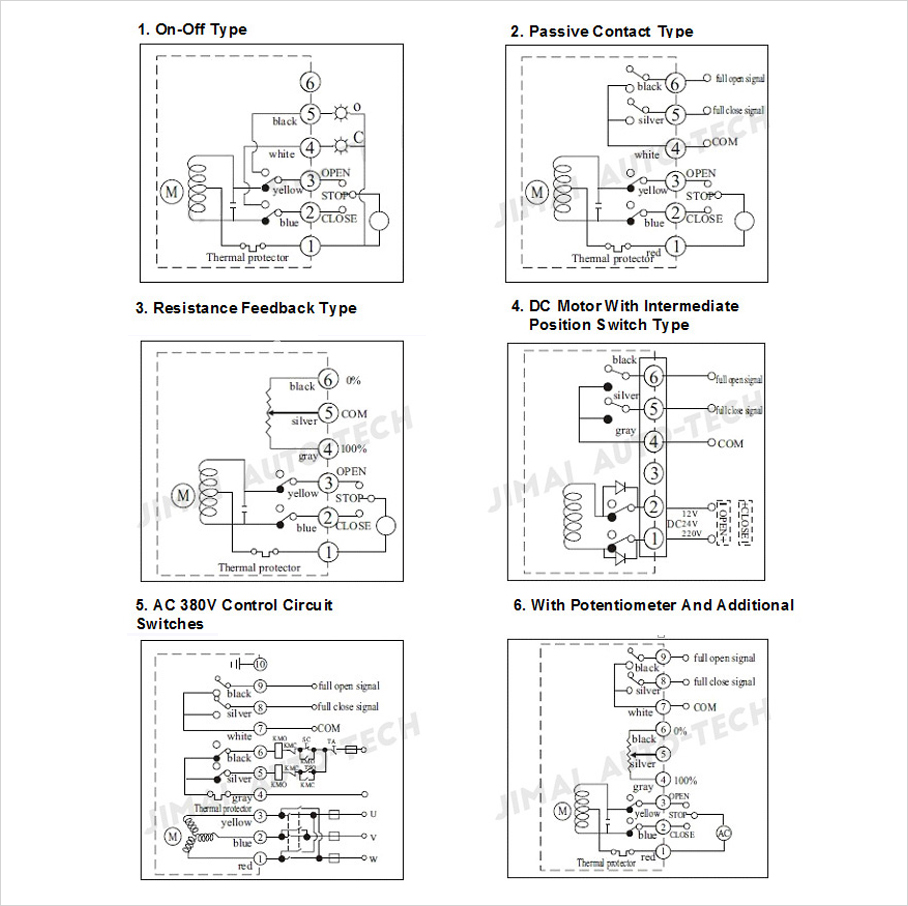

JM On-Off Type:
JIMAI JM Series Compact / Industrial Duty / Quarter Turn / Weather-Proof / Valve Rotary Electric Actuator On-off Type with
Screen Display for Ball Valve Butterfly Valve.
| Model | JM 05 | JM 10 | JM 15 | JM 25 | JM 50 | JM 100 | JM 200 |
|---|---|---|---|---|---|---|---|
| Power | AC24V,AC110V,AC220V,AC380V,DC24V,DC110V,DC220V | ||||||
| Output torque | 50N.M | 100N.M | 150N.M | 250N.M | 500N.M | 1000N.M | 2000N.M |
| Action time | 12/25s | 15/30s | 50/100s | ||||
| Motor power | 15W | 25W | 30W | 45W | 90W | 110W | 110W |
| Protection | Motor Overheating protection(120℃) | ||||||
| Angle of Rotation | 0-90° | ||||||
| Temperature | -10-60℃ | ||||||
| Withstand voltage | 1500V | ||||||
| Starting current | 0.25A | 0.6A | 0.68A | 0.76A | 1.2A | 1.36A | 1.36A |
| Working current | 0.25A | 0.52A | 0.55A | 0.70A | 1.15A | 1.28A | 1.28A |
| Protection grade | Equivalent of IP67 standard | ||||||
| Limit | Electric: fully open to fully closed limit switch; Manual:mechanical block | ||||||
| Weight | 2.8Kg | 4.2Kg | 4.5Kg | 7.2Kg | 7.5Kg | 12.5Kg | 12.5Kg |
| Input signal | 4-20mA 1-10V 1-5V | ||||||
| Output signal | 4-20mA 1-10V 1-5V | ||||||
Actuator Size Selection for Valve
| Model | Ball Valve (Hard Seal) |
Ball Valve (Soft Seal) |
Butterfly Valve (Hard Seal) |
Butterfly Valve (Soft Seal) |
|---|---|---|---|---|
| JM-05 | DN15-DN25 | DN15-DN40 | DN50 | DN50-DN65 |
| JM-10 | DN32-DN40 | DN50-DN65 | DN65-DN80 | DN80-DN125 |
| JM-15 | DN40-DN50 | DN65 | DN100-DN125 | DN125-DN150 |
| JM-25 | DN65-DN80 | DN80-DN100 | DN125-DN150 | DN150-DN200 |
| JM-50 | DN80-DN100 | DN100-DN125 | DN200-DN250 | DN250-DN300 |
| JM-100 | DN125 | DN150 | DN250-DN300 | DN300-DN350 |
| JM-200 | DN150-DN200 | DN200-DN250 | DN350-DN400 | DN400-DN500 |
Material Using

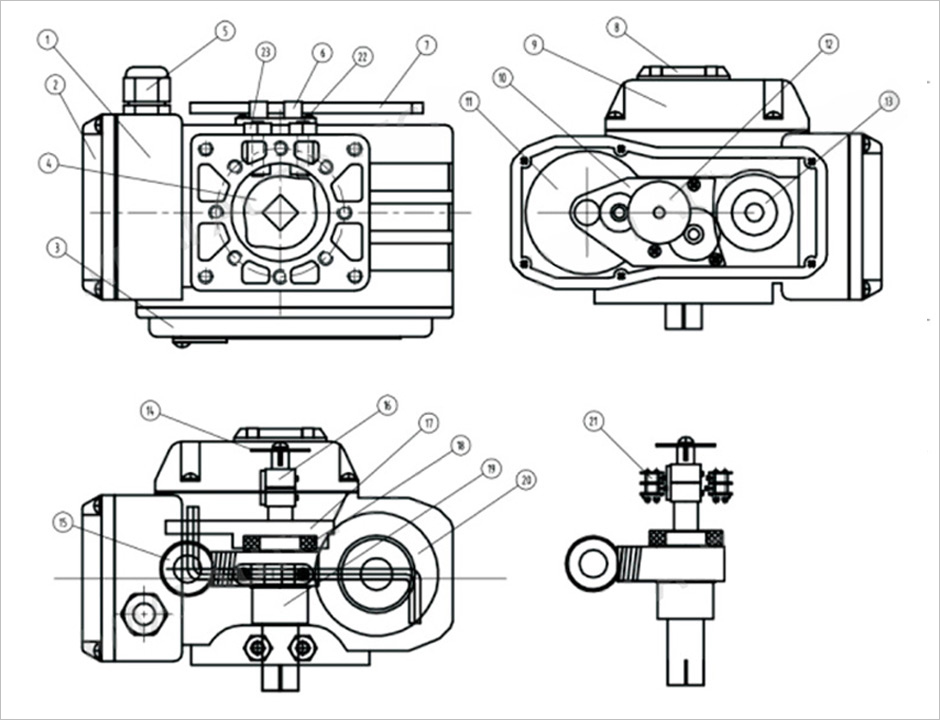

| No | Parts Name | Material | Qty | No | Parts Name | Material | Qty |
|---|---|---|---|---|---|---|---|
| 1 | Main Body | Aluminum Alloy | 1 | 13 | Oil Seal | Rubber | 2 |
| 2 | Wiring Cover | Aluminum Alloy | 1 | 14 | Dial Plate | Aluminum Alloy | 1 |
| 3 | Gear Cover | Aluminum Alloy | 1 | 15 | Transmission Worm Steam | 40CR | 1 |
| 4 | Mechanical Block | Aluminum Alloy | 1 | 16 | Limit Cam | Aluminum Alloy | 2 |
| 5 | Waterproof Connector | Plastic | 1 | 17 | Worm Gear Cover | Aluminum Alloy | 1 |
| 6 | Wrench Buckle | Plastic | 1 | 18 | Shaft | Steel | 10 |
| 7 | Manual Handle | CR12 | 1 | 19 | Transmission Worm Gear | Aluminum Alloy | 1 |
| 8 | Indicate Window | Aluminum Alloy | 1 | 20 | Motor Set | Copper | 1 |
| 9 | Upper Cover | Aluminum Alloy | 1 | 21 | SPDT Switches | Plastic | 4 |
| 10 | Gearbox | Plastic | 1 | 22 | Nut | SS | 2 |
| 11 | Motor Cover | Aluminum Alloy | 1 | 23 | Screw | SS | 2 |
| 12 | Transmission Worm Set | 40CR | 1 |

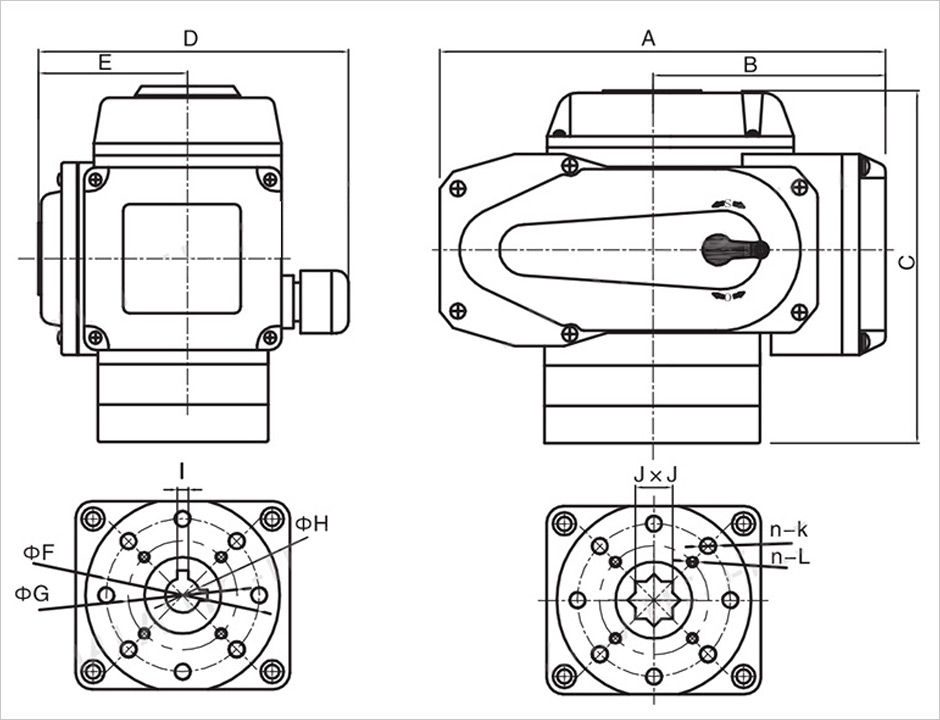

Outline Dimension
| Model | A | B | C | D | E | F | G | H | I | J | K | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JM-05 | 165 | 72 | 152 | 134 | 67 | Ø 50 | Ø36 | Ø12.8 | 3 | 11X11 | 4-M6 | 4-M6 |
| JM-10 | 204 | 98.5 | 159 | 140 | 75 | Ø 70 | Ø50 | Ø16 | 5 | 14X14 | 4-M8 | 4-M6 |
| JM-15 | 204 | 98.5 | 159 | 140 | 75 | Ø 70 | Ø50 | Ø19.1 | 5 | 17X17 | 4-M8 | 4-M6 |
| JM-25 | 257 | 119 | 193 | 178 | 90 | Ø 102 | Ø70 | Ø22.3 | 5 | 22X22 | 4-M10 | 4-M8 |
| JM-50 | 257 | 119 | 193 | 178 | 90 | Ø 102 | Ø70 | Ø28.8 | 5 | 22X22 | 4-M10 | 4-M8 |
| JM-100 | 280 | 153 | 160 | 172 | 90 | Ø 125 | Ø102 | Ø31.8 | 8 | 27X27 | 4-M12 | 4-M10 |
| JM-200 | 280 | 153 | 160 | 172 | 90 | Ø 140 | Ø125 | Ø33.4 | 10 | 36X36 | 4-M12 | 4-M12 |
